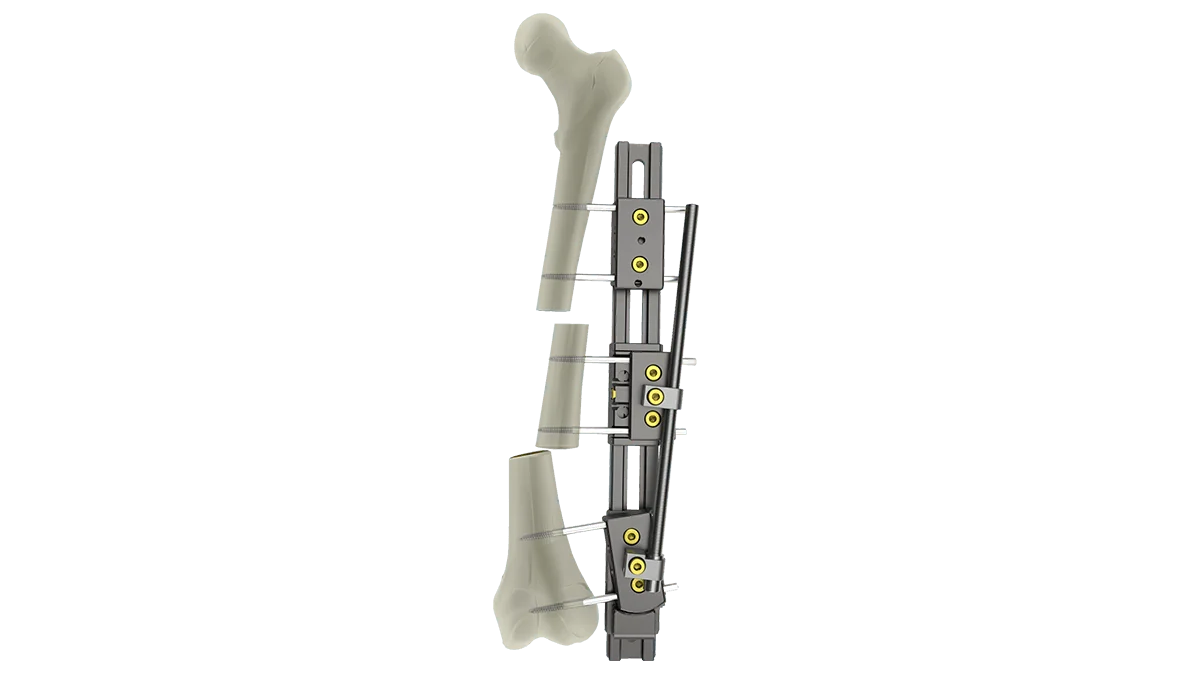

UniX® Rail Fixator

The Response Ortho UniX® Rail Fixator is a low-profile solution designed for multiplanar deformity correction. This external fixation system offers versatile applications, including but not limited to:

Limb lengthening (single-level and bi-focal)

Angular corrections and fusions

Fracture fixation

Derotational and angular osteotomies

Proximal femur reconstruction procedures

Components:

Available in multiple lengths:

Pediatric: 100mm, 150mm, 250mm, and 350mm

Adult: 150mm, 250mm, 350mm, and 420mm

Available in Aluminum and Carbon Fiber*.

Facilitates fixation of two different Compression/Distraction (C/D) units, especially useful in bi-focal cases.

Includes four pin slots for secure fixation.

Features a K-Wire hole for precise adjustment of the clamp level on the bone segment.

Available in Aluminum and Carbon Fiber*.

Allows up to 50° of angular correction (25° from neutral in either direction).

Supports incremental angular corrections with 1° adjustment per turn/click.

Available in Aluminum and Carbon Fiber.

Enables up to 20mm of medial/lateral translation (10mm from neutral in either direction).

Particularly beneficial for extensive lengthening procedures where varus translation is common.

Available in Aluminum and Carbon Fiber.

Designed for acute angular corrections.

Features a serrated locking mechanism for enhanced stability after correction.

Available in Aluminum and Carbon Fiber.

Facilitate ring-wire and/or pin fixation in multiple planes.

Include both straight and angular ring adapters to accommodate deformity-specific angulations.

The Smart Fixator® rings integrate ring fixation with unilateral fixation, especially beneficial in rotational bifocal femoral deformities.

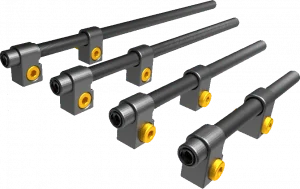

Allows for gradual compression and/or distraction.

Provides robust axial resistance.

Each full turn of the unit adjusts the bone segments by 1mm.

Enables dynamic fixation to stimulate bone regeneration.

Variable micro-motion.

Available in titanium and stainless steel materials.

Offered in 4.5mm and 6.0mm diameters.

Available with blunt or trocar-point tip geometry.

Surface options include standard polished and Hydroxyapatite (HA)-coated.

The UniX® Rail Fixator is available in two different sizes, suitable for both adult and pediatric patients.

* Carbon Fiber components are approximately 40% lighter than their Aluminum versions (Test report available in company records).

This product is CE-marked but has not been cleared by the FDA for distribution in the United States.
