STEP Ankle Fracture Plating System

The Response Ortho STEP Ankle Plating System is designed to be a low profile, minimally invasive comprehensive solution available for the treatment of common ankle injuries. A pre-contoured bend supports the anatomy, while the unique, diverging screw geometry of the distal hole cluster allows for maximized fixation at the fracture site. The system is also suitable for use with external fixation to distract the ankle joint.

The plates are designed to be used with both locking and non-locking screws although locking screws provide stronger and more stable fixation. All the plates have compression slots on the shafts for adjusting plate position and fracture compression.

1.6mm average anodized Titanium plate thickness helps minimize soft tissue irritation.

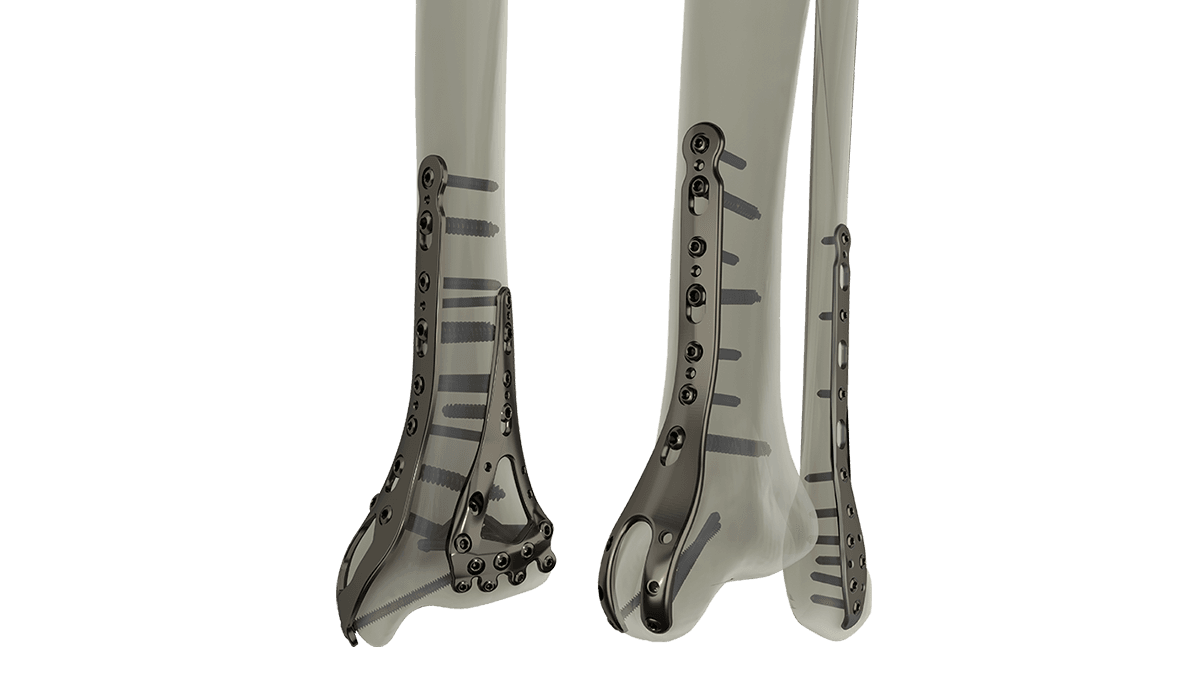

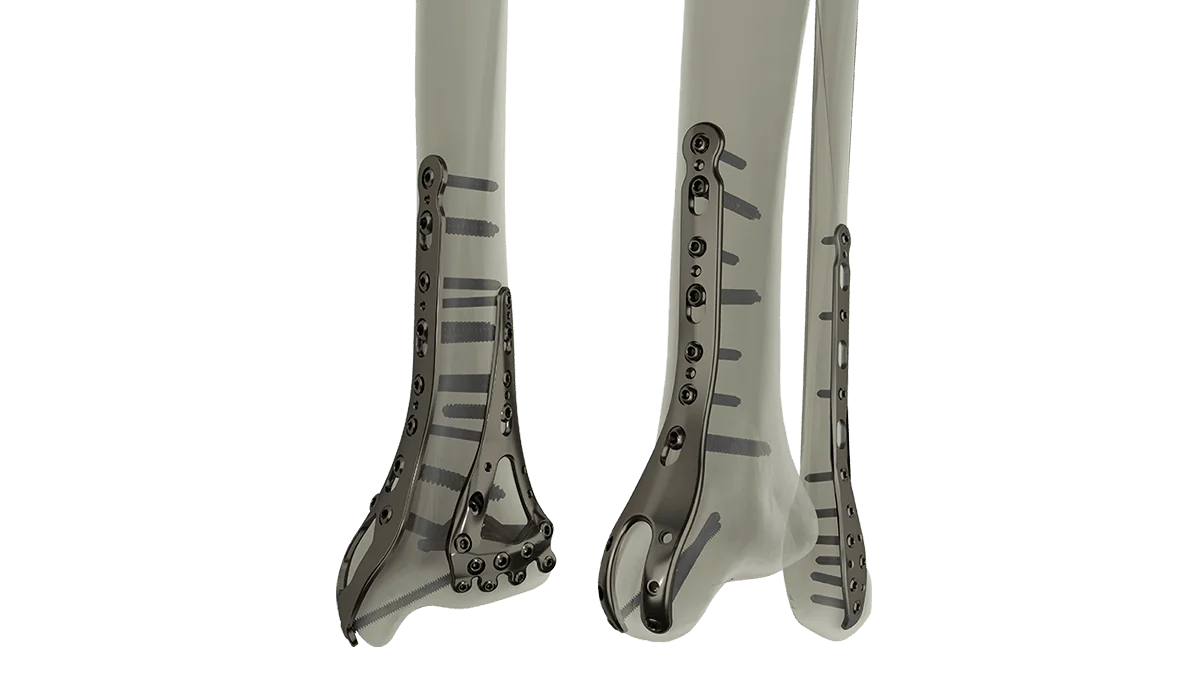

System Plate Options

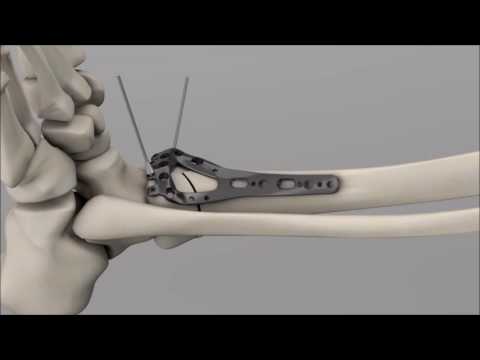

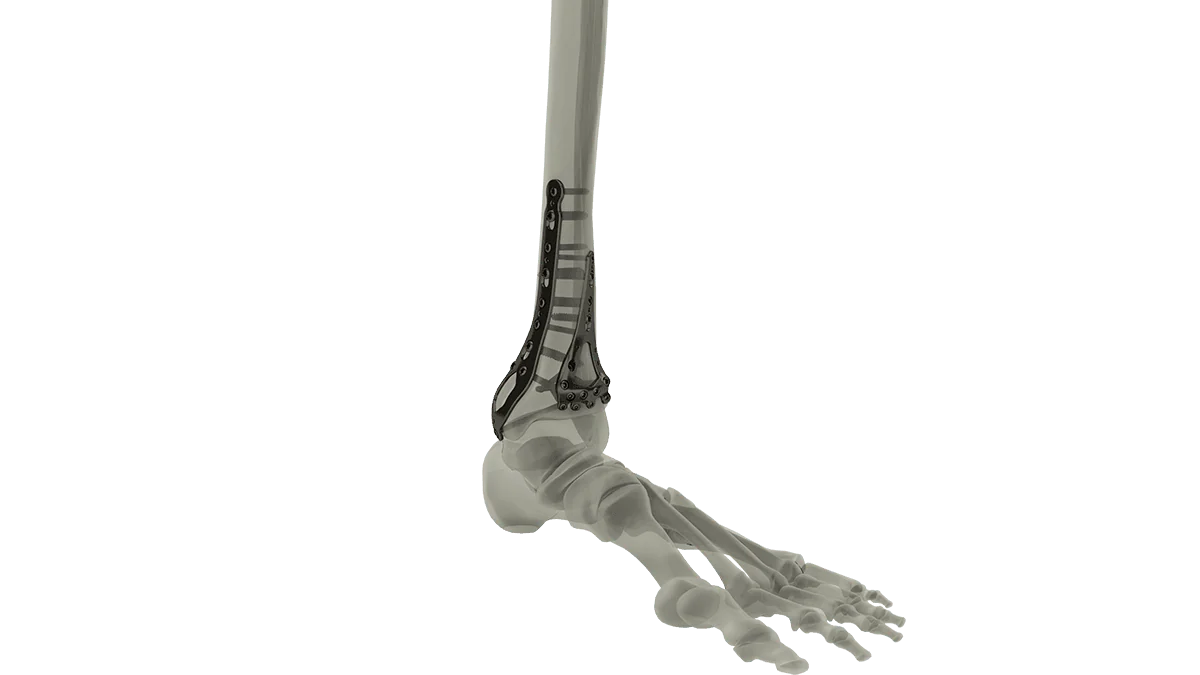

Anatomic Distal Anterior Tibial Plate

Distal window provides radiopaque visualization, micro-flexibility, grafting access and articular surface reduction

2.3mm raft screws provide subchondral support

There are two divergent screws in the medial malleolar area

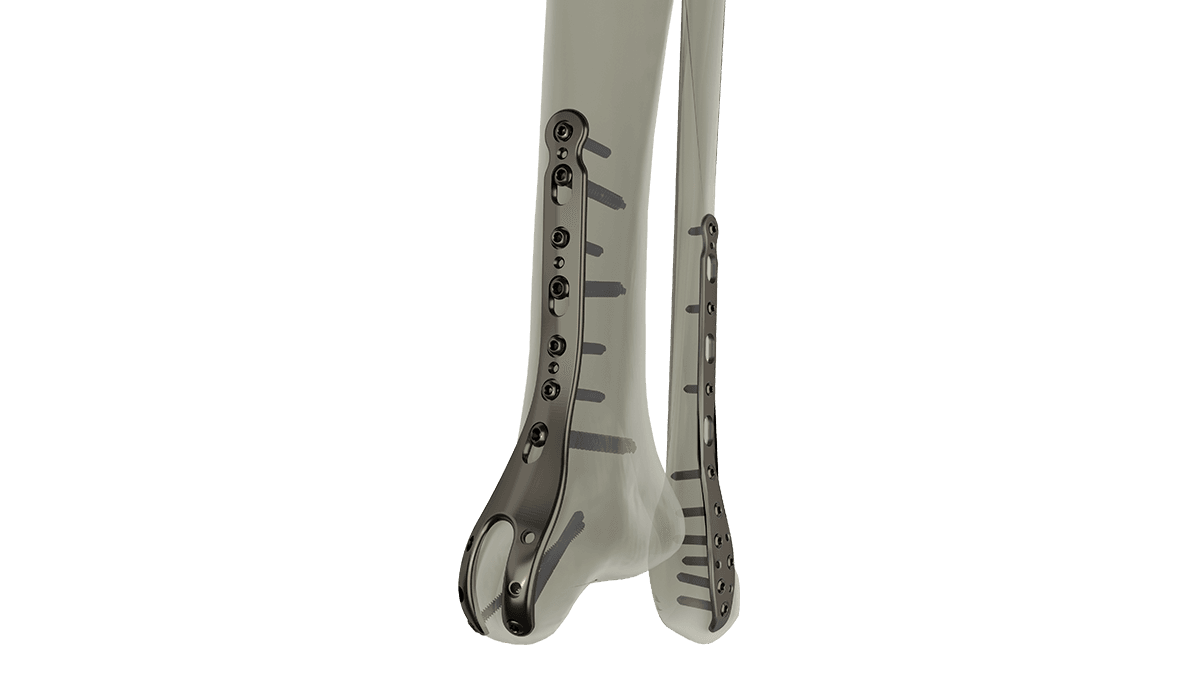

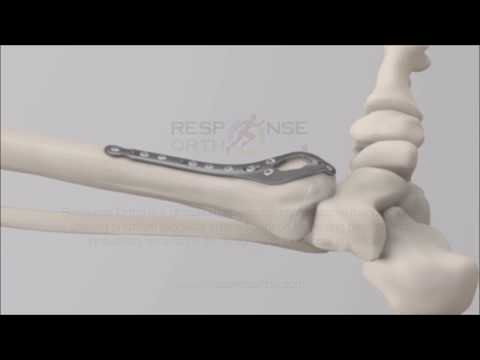

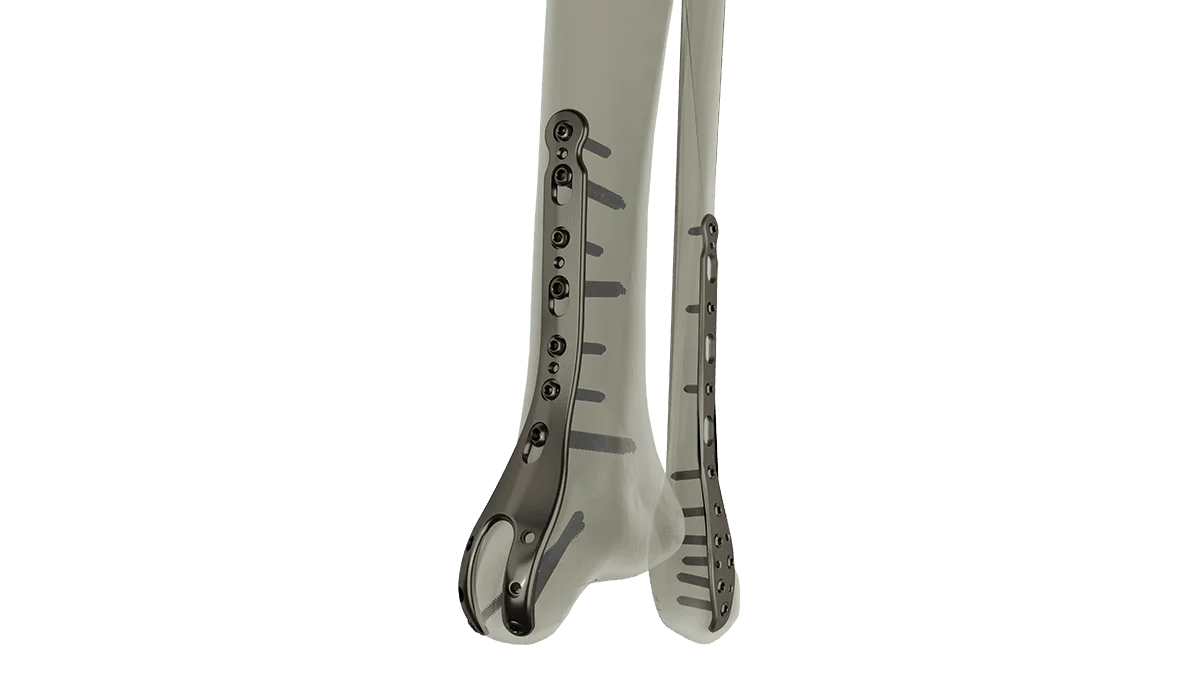

Anatomic Distal Medial Tibial Spoon Plate

Distal window provides radiopaque visualization, micro-flexibility, grafting access and articular surface reduction

Distal screw provides interfragmentary compression.

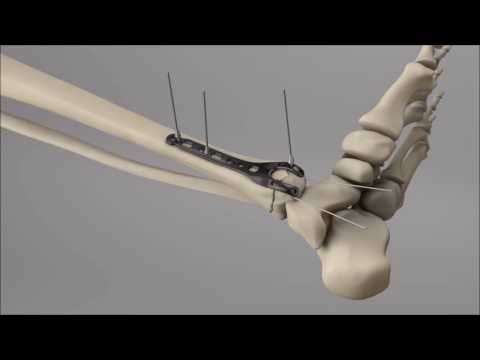

Anatomic Distal Tibia Medial Fork Plate

Distal double column structure provides hook fixation and increased construct strength

2.3mm distal screws provide interfragmentary fixation options

2.3mm screws on the columns provide small bone segments fixation

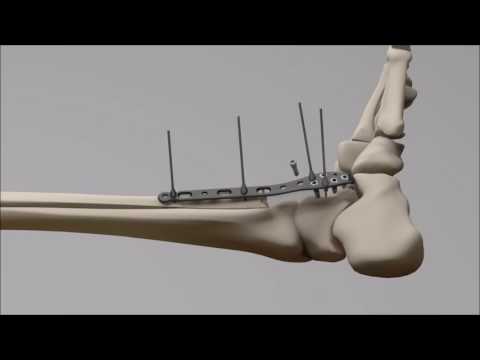

Anatomic Fibular Plate

Multiple distal fixation points provide excellent rotational stability and fixation strength

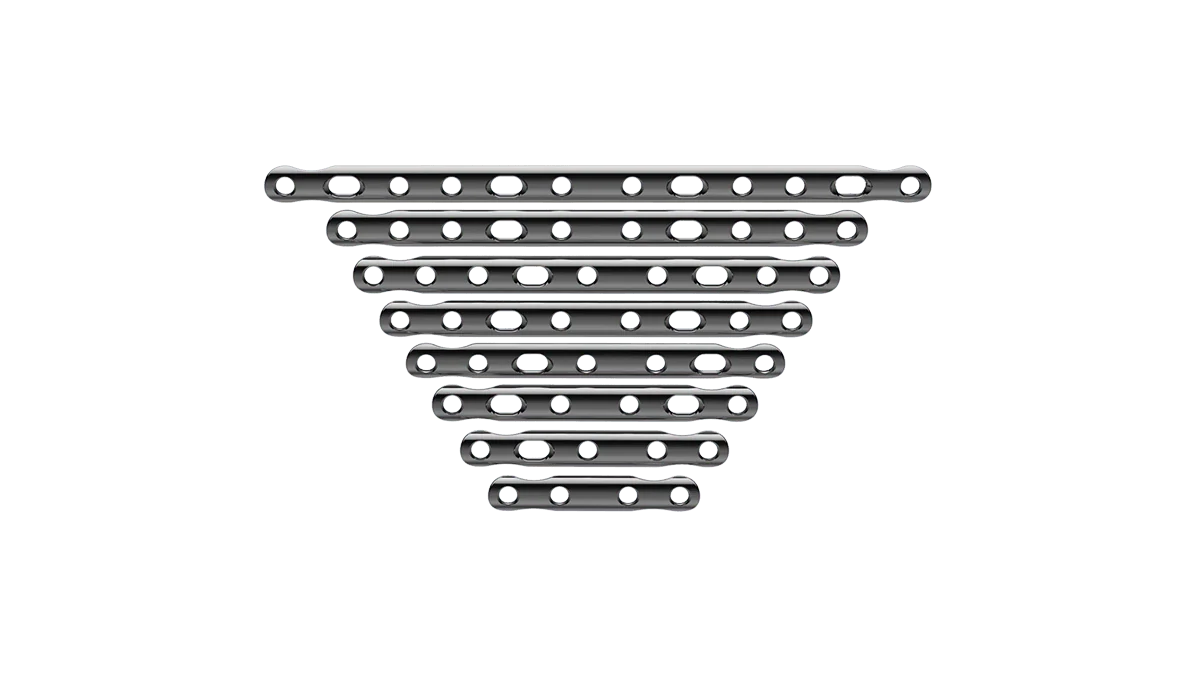

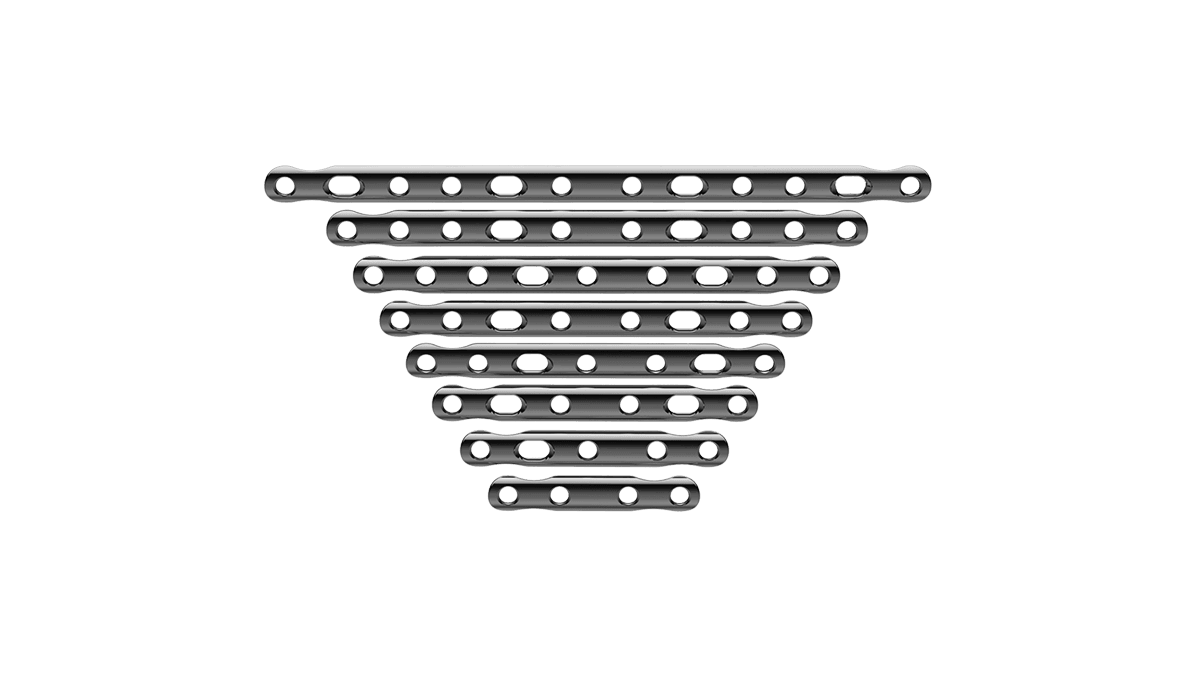

1/3 Tubular Plate

Smooth edges prevent soft tissue irritation

Plate micro flexibility supports faster healing

Screw Options:

2.3mm locking and non-locking screws (for Anterior and Medial Fork Plates)

Self-tapping 2.7mm locking and non-locking cortical screws, self tapping

Self-tapping 3.5mm locking and non-locking screws, self tapping

Self-tapping 4.0mm non-locking cancellous screws, self tapping

This product is CE-marked but has not been cleared by the FDA for distribution in the United States.
